Monitor and troubleshoot batch workloads

This document describes the tools and files you can use to monitor and troubleshoot Serverless for Apache Spark batch workloads .

Troubleshoot workloads from the Google Cloud console

When a batch job fails or has poor performance, a recommended first step is to open to its Batch detailspage from the Batches page in the Google Cloud console.

Use the Summary tab: your troubleshooting Hub

The Summarytab, which is selected by default when the Batch detailspage opens, displays critical metrics and filtered logs to help you make a quick initial assessment of batch health. After this initial assessment, you can perform a deeper analysis using more specialized tools lined on the Batch detailspage, such as the Spark UI , the Logs Explorer , and Gemini Cloud Assist .

Batch metric highlights

The Summarytab on the Batch detailspage includes charts that display important batch workload metric values. The metric charts populate after the completes, and offer a visual indication of potential issues such as resource contention, data skew, or memory pressure.

Metrics table

The following table lists the Spark workload metrics displayed on the Batch detailspage in the Google Cloud console, and describes how metric values can provide insight into workload status and performance.

Job logs

The Batch detailspage includes a Job logssection that lists warnings and errors filtered from the job (batch workload) logs. his feature allows for quick identification of critical issues without needing to manually parse through extensive log files. You can select a log Severity(for example, Error ) from the drop-down menu and add a text Filterto narrow down the results. To perform a more in-depth analysis, click the View in Logs Explorericon to open the selected batch logs in the Logs Explorer .

Example: Logs Exploreropens after choosing Errors from the Severity selector on the Batch detailspage in the Google Cloud console.

Spark UI

The Spark UI collects Apache Spark execution details from Serverless for Apache Spark batch workloads. There is no charge for the Spark UI feature, which is enabled by default.

Data collected by the Spark UI feature is retained for 90 days. You can use this web interface to monitor and debug Spark workloads without having to create a Persistent History Server .

Required Identity and Access Management permissions and roles

The following permissions are required to use the Spark UI feature with batch workloads.

• Data collection permission: dataproc.batches.sparkApplicationWrite . This permission must be granted to the service account that runs batch workloads. This permission is included in the Dataproc Worker role, which is automatically granted to the Compute Engine default service account that Serverless for Apache Spark uses by default (see Serverless for Apache Spark service account ). However, if you specify a custom service account for your batch workload, you must add the dataproc.batches.sparkApplicationWrite permission to that service account (typically, by granting the service account the Dataproc Worker role).

• Spark UI access permission: dataproc.batches.sparkApplicationRead . This permission must be granted to a user to access the Spark UI in the Google Cloud console. This permission is included in the Dataproc Viewer , Dataproc Editor and Dataproc Administrator roles. To open the Spark UI in the Google Cloud console, you must have one of these roles or have a custom role that includes this permission.

Open the Spark UI

The Spark UI page is available in the Google Cloud console batch workloads.

1. Go to the Serverless for Apache Spark interactive sessionspage.

   Go to Dataproc Batches

2. Click a Batch IDto open the Batch detailspage.

3. Click View Spark UIin the top menu.

The View Spark UIbutton is disabled in the following cases:

• If a required permission isn't granted
• If you clear the Enable Spark UIcheckbox on the Batch detailspage
• If you set the spark.dataproc.appContext.enabled property to false when you submit a batch workload

AI-powered Investigations with Gemini Cloud Assist (Preview)

Overview

The Gemini Cloud Assist Investigations preview feature uses Gemini advanced capabilities to assist in creating and running Serverless for Apache Spark batch workloads. This feature analyzes failed and slow-running workloads to identify root causes and recommend fixes. It creates persistent analysis that you can review, save, and share with Google Cloud support to facilitating collaboration and accelerate issue resolution.

Features

Use this feature to create investigations from the Google Cloud console:

• Add a natural language context description to an issue before creating an investigation.
• Analyse failed and slow batch workloads.
• Get insights into issue root causes with recommended fixes.
• Create Google Cloud support cases with the full investigation context attached.

Before you begin

To get started using the Investigation feature, in your Google Cloud project, enable the Gemini Cloud Assist API .

Start an investigation

To start an investigation, do one of the following:

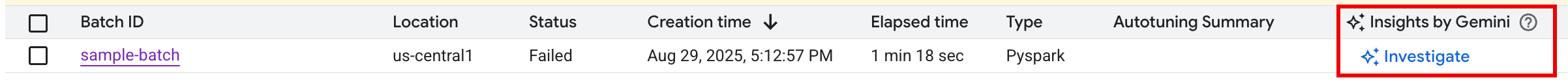

1. Option 1: In the Google Cloud console, go to the Batches List Page . For any batch with a Failed status, an INVESTIGATEbutton appears in the Insights by Geminicolumn. Click the button to start an investigation.

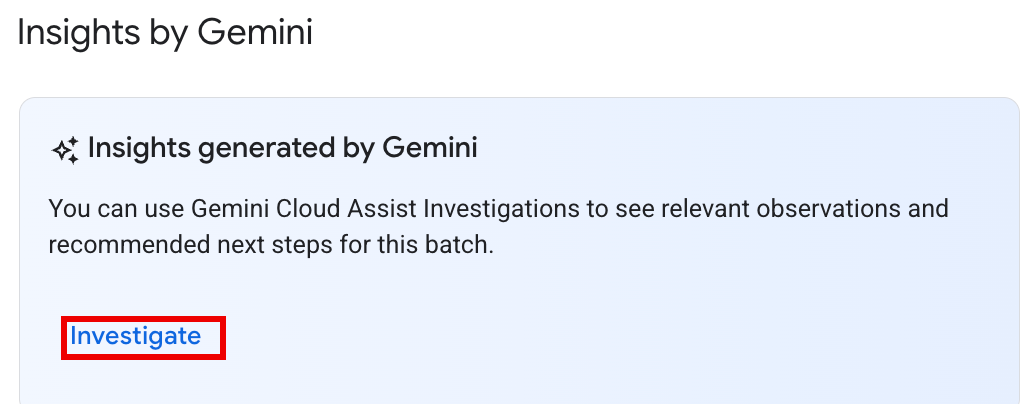

2. Option 2: Open the Batch Details Pageof the batch workload to investigate. For both Succeeded and Failed batch workloads, in the Health overviewsection of the Summarytab, an INVESTIGATEbutton appears in the Insights by Geminipanel. Click the button to start an investigation.



   The investigation button text indicates the status of the investigation:

   • INVESTIGATE:No investigation has been run for this batch_details. Click the button to start an investigation.
   • VIEW INVESTIGATION:An investigation has been completed. Click the button To view the results.
   • INVESTIGATING:An investigation is in progress.

Interpret investigation results

Once an investigation is complete, the Investigation detailspage opens. This page contains the full Gemini analysis, which is organized into the following sections:

• Issue: A collapsed section containing auto-populated details of the batch worklod being investigated.
• Relevant Observations: A collapsed section that lists key data points and anomalies that Gemini found during its analysis of logs and metrics.
• Hypotheses: This is the primary section, which is expanded by default. It presents a list of potential root causes for the observed issue. Each hypothesis includes:
  • Overview: A description of the possible cause, such as "High Shuffle Write Time and Potential Task Skew."
  • Recommended Fixes: A list of actionable steps to address the potential issue.

Take action

After reviewing the hypotheses and recommendations:

• Apply one or more of the suggested fixes to the job configuration or code, and then rerun the job.

• Provide feedback on the helpfulness of the investigation by clicking the thumbs-up or thumbs-down icons at the top of the panel.

Review and escalate investigations

The results of a previously run investigation can be reviewed by clicking the investigation name on the Cloud Assist Investigationspage to open the Investigation detailspage.

If further assistance is needed, you can use open a Google Cloud support case. This process provides the support engineer with the complete context of the previously performed investigation, including the observations and hypotheses generated by Gemini. This context sharing significantly reduces the back-and-forth communication required with the support team, and leads to faster case resolution.

To create a support case from an investigation:

In the Investigation detailspage, click Request support.

Preview status and pricing

There is no charge for Gemini Cloud Assist investigations during public preview. Charges will apply to the feature when it becomes generally available (GA) .

For more information about pricing after general availability, see Gemini Cloud Assist Pricing .

Ask Gemini Preview (Retiring on 22 September 2025)

The Ask Geminipreview feature provided one-click access to insights on the Batchesand Batch detailspages in the Google Cloud console through an Ask Geminibutton. This function generated a summary of errors, anomalies, and potential performance improvements based on workload logs and metrics.

After the "Ask Gemini" preview retires on 22 September, 2025, users can continue to obtain AI-powered assistance using the Gemini Cloud Assist Investigations feature .

Important:To ensure uninterrupted troubleshooting AI assistance, enabling Gemini Cloud Assist Investigations before September 22, 2025 is highly recommended.

Serverless for Apache Spark logs

Logging is enabled by default in Serverless for Apache Spark, and workload logs persist after a workload finishes. Serverless for Apache Spark collects workload logs in Cloud Logging . You can access Serverless for Apache Spark logs under the Cloud Dataproc Batch resource in the Logs Explorer.

Query Serverless for Apache Spark logs

The Logs Explorer in the Google Cloud console provides a query pane to help you build a query to examine batch workload logs. Here are steps you can follow to build a query to examine batch workload logs:

1. Go to Logs Explorer

2. Your current project is selected. You can click Refine scope Projectto select a different project.

3. Define a batch logs query.

   • Use filter menus to filter for a batch workload.

     1. Under All resources, select the Cloud Dataproc Batchresource.



        1. In the Select resourcepanel, select the batch LOCATION, then the BATCH ID. These batch parameters are listed on the Dataproc Batches page in the Google Cloud console.



        2. Click Apply.

        3. Under Select log names. enter dataproc.googleapis.com in the Search log namesbox to limit the log types to query. Select one or more of the listed log file names.



   • Use the query editor to filter for VM-specific logs.

     1. Specify the resource type and VM resource name as shown in the following example:

        resource.type="cloud_dataproc_batch"
        labels."dataproc.googleapis.com/resource_name"="gdpic-srvls-batch- BATCH_UUID
        - VM_SUFFIX
        "

        Notes:
        • BATCH_UUID:The batch UUID is listed in the Batch details page in the Google Cloud console, which opens when you click the Batch ID on the Batchespage.



        The batch logs also list the batch UUID in the VM resource name. Here's an example from a batch driver.log:



4. Click Run query.

Serverless for Apache Spark log types and sample queries

The following list describes different Serverless for Apache Spark log types and provides sample Logs Explorer queries for each log type.

1. dataproc.googleapis.com/output : This log file contains batch workload output. Serverless for Apache Spark streams batch output to the output namespace, and sets the filename to JOB_ID .driver.log .

   Sample Logs Explorer query for output logs:

   resource.type="cloud_dataproc_batch"
   resource.labels.location=" REGION
   "
   resource.labels.batch_id=" BATCH_ID
   "
   logName="projects/ PROJECT_ID
   /logs/dataproc.googleapis.com%2Foutput"

2. dataproc.googleapis.com/spark : The spark namespace aggregates Spark logs for daemons and executors running on Dataproc cluster master and worker VMs. Each log entry includes a master , worker or executor component label to identify the log source, as follows:

   • executor : Logs from user-code executors. Typically, these are distributed logs.
   • master : Logs from the Spark standalone resource manager master, which are similar to Dataproc on Compute Engine YARN ResourceManager logs.
   • worker : Logs from the Spark standalone resource manager worker, which are similar to Dataproc on Compute Engine YARN NodeManager logs.

   Sample Logs Explorer query for all logs in the spark namespace:

   resource.type="cloud_dataproc_batch"
   resource.labels.location=" REGION
   "
   resource.labels.batch_id=" BATCH_ID
   "
   logName="projects/ PROJECT_ID
   /logs/dataproc.googleapis.com%2Fspark"

   Sample Logs Explorer query for Spark standalone component logs in the spark namespace:

   resource.type="cloud_dataproc_batch"
   resource.labels.location=" REGION
   "
   resource.labels.batch_id=" BATCH_ID
   "
   logName="projects/ PROJECT_ID
   /logs/dataproc.googleapis.com%2Fspark"
   jsonPayload.component=" COMPONENT
   "

3. dataproc.googleapis.com/startup : The startup namespace includes the batch (cluster) startup logs. Any initialization script logs are included. Components are identified by label, for example:

   startup-script[855]: ... activate-component-spark[3050]: ... enable spark-worker

   Sample Logs Explorer query for logs startup logs on a specified VM:

   resource.type="cloud_dataproc_batch"
   resource.labels.location=" REGION
   "
   resource.labels.batch_id=" BATCH_ID
   "
   logName="projects/ PROJECT_ID
   /logs/dataproc.googleapis.com%2Fstartup"
   labels."dataproc.googleapis.com/resource_name"="gdpic-srvls-batch- BATCH_UUID
   - VM_SUFFIX
   "

4. dataproc.googleapis.com/agent : The agent namespace aggregates Dataproc agent logs. Each log entry includes filename label that identifies the log source.

   Sample Logs Explorer query for agent logs generated by a specified worker VM:

   resource.type="cloud_dataproc_batch"
   resource.labels.location=" REGION
   "
   resource.labels.batch_id=" BATCH_ID
   "
   logName="projects/ PROJECT_ID
   /logs/dataproc.googleapis.com%2Fagent"
   labels."dataproc.googleapis.com/resource_name"="gdpic-srvls-batch- BATCH UUID

    -w WORKER

    #
   "

5. dataproc.googleapis.com/autoscaler : The autoscaler namespace aggregates Serverless for Apache Spark autoscaler logs.

   Sample Logs Explorer query for agent logs generated by a specified worker VM:

   resource.type="cloud_dataproc_batch"
   resource.labels.location=" REGION
   "
   resource.labels.batch_id=" BATCH_ID
   "
   logName="projects/ PROJECT_ID
   /logs/dataproc.googleapis.com%2Fautoscaler"
   labels."dataproc.googleapis.com/resource_name"="gdpic-srvls-batch- BATCH UUID

    -w WORKER

    #
   "

For more information, see Dataproc logs .

For information on Serverless for Apache Spark audit logs, see Dataproc audit logging .

Workload metrics

Serverless for Apache Spark provides batch and Spark metrics that you can view from the Metrics Explorer or the Batch detailspage in the Google Cloud console.

Batch metrics

Dataproc batch resource metrics provide insight into batch resources, such as the number of batch executors. Batch metrics are prefixed with dataproc.googleapis.com/batch .

Spark metrics

By default, Serverless for Apache Spark enables the collection of available Spark metrics , unless you use Spark metrics collection properties to disable or override the collection of one or more Spark metrics.

Available Spark metrics include Spark driver and executor metrics, and system metrics. Available Spark metrics are prefixed with custom.googleapis.com/ .

Set up metric alerts

You can create Dataproc metric alerts to receive notice of workload issues.

Create charts

You can create charts that visualize workload metrics by using the Metrics Explorer in the Google Cloud console. For example, you can create a chart to display disk:bytes_used , and then filter by batch_id .

Cloud Monitoring

Monitoring uses workload metadata and metrics to provide insights into the health and performance of Serverless for Apache Spark workloads. Workload metrics include Spark metrics, batch metrics, and operation metrics.

You can use Cloud Monitoring in the Google Cloud console to explore metrics, add charts, create dashboards, and create alerts.

Create dashboards

You can create a dashboard to monitor workloads using metrics from multiple projects and different Google Cloud products. For more information, see Create and manage custom dashboards .

Persistent History Server

Serverless for Apache Spark creates the compute resources that are needed to run a workload, runs the workload on those resources, and then deletes the resources when the workload finishes. Workload metrics and events don't persist after a workload completes. However, you can use a Persistent History Server (PHS) to retain workload application history (event logs) in Cloud Storage.

To use a PHS with a batch workload, do the following:

1. Create a Dataproc Persistent History Server (PHS) .

2. Specify your PHS when you submit a workload .

3. Use the Component Gateway to connect to the PHS to view application details, scheduler stages, task level details, and environment and executor information.

Autotuning

• Enable autotuning for Serverless for Apache Spark:You can enable Autotuning for Serverless for Apache Spark when you submit each recurring Spark batch workload using the Google Cloud console, gcloud CLI, or the Dataproc API.

gcloud
dataproc
batches
submit
 COMMAND

 \

--region =
 REGION

 \

--cohort =
 COHORT

 \

 other
arguments
...

 ...
runtimeConfig:
cohort:
TPCH-Query1
...
