This page
applies toApigeeandApigee hybrid.
This page describes how to configure API observations in API hub for Apigee runtime projects.
Before you begin
API observations is part of the Advanced API Security add-on. To ingest the Apigee API Observation assets, you must first activate this add-on by enabling Shadow API Discovery from theShadow APIspage.
ClicksettingsSettingsfrom the left navigation menu to open theSettingspage.
Go to theProject associationstab and clickAttach runtime project. This displays theSelect a resourcepane.
Click the Google Cloud project where the Apigee instance is installed.

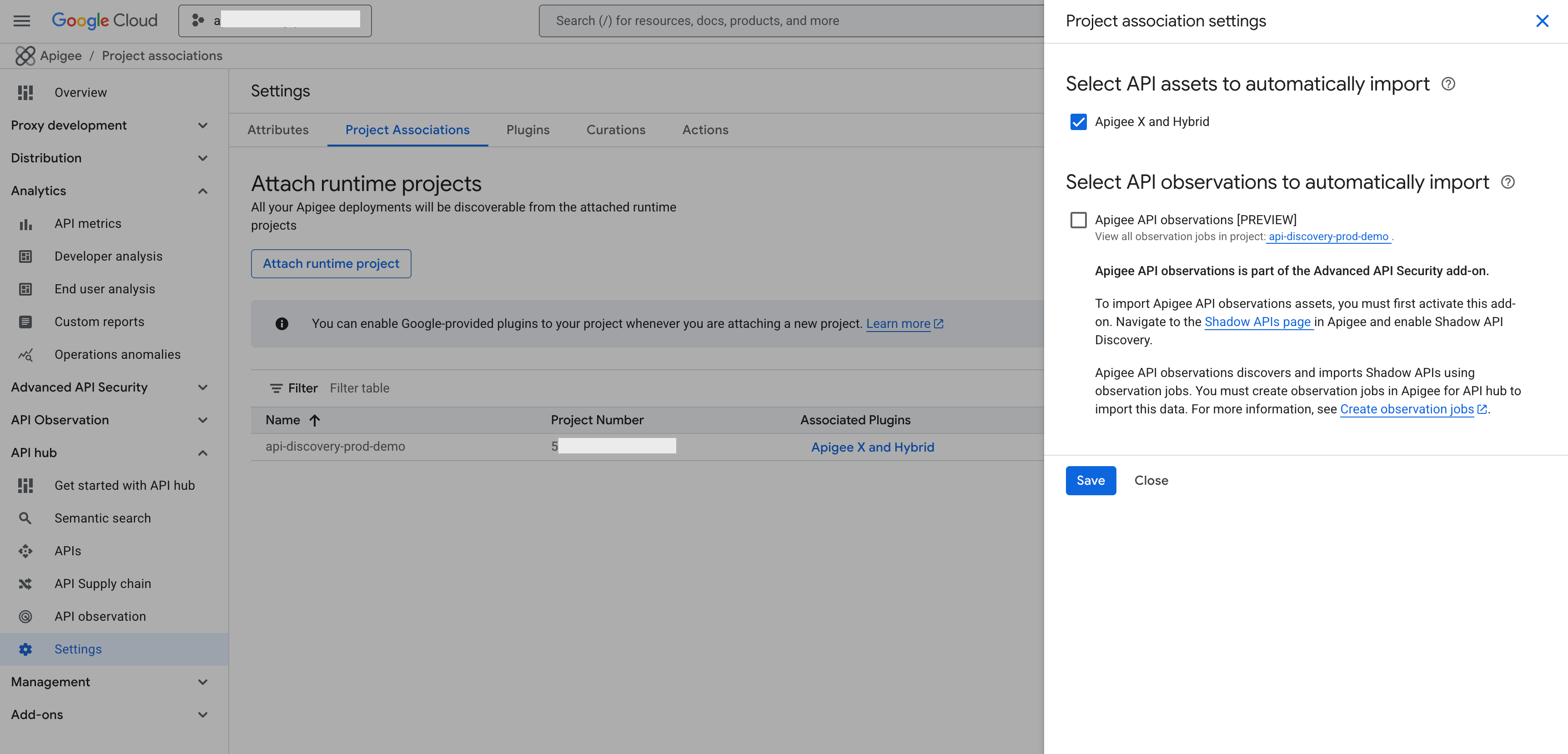

In theProject association settingspane, select theApigee API Observationcheckbox.
Apigee API Observation discovers and imports Shadow APIs using observation jobs. Ensure that you havecreated observation jobsin Apigee for API hub to ingest this data.
ClickAttach.
TheProject associationspage is updated with the Apigee runtime project and theAssociated pluginscolumn is updated with a newApigee API Observationplugin instance.
Configure API observations in API hub for existing Apigee runtime projects
For existing Apigee runtime projects that are associated with API hub, you can edit the project association settings to ingest data from Apigee API Observation:
In the Google Cloud console, go to theAPI hubpage.
ClicksettingsSettingsfrom the left navigation menu to open theSettingspage.
Go to theProject associationstab to view the list of attached projects.
ClickEdit settingsfor the desired project.
In theProject association settingspane, select theApigee API Observationcheckbox.
ClickSaveto apply your changes.
TheProject associationspage is updated with the Apigee runtime project and theAssociated pluginscolumn is updated with a newApigee API Observationplugin instance.
Considerations
The following considerations apply when configuring API observations in API hub:
The refresh rate for theAPI observationspage in API hub is 30 minutes. This might cause a slight delay in the appearance or update of any newly observed APIs in API hub.
API observations in API hub currently only supports Apigee runtime projects.
Custom tags assigned in Apigee runtime projects are not directly transferred or supported within API hub.
